This railway linemen telephone was made by "Ascom" (Fusion of former Swiss Telecom equipment manufacturers Autophon, Hasler and Zellweger) in the early nineties and used for a short time (before being soon replaced by GSM phones) on SBB and probably also other Swiss railway systems. It is very heavy duty, weather protected and I assume has been mainly used in combination with construction work along lines. The same devices seems to have been used also for fix installed telephones along some railway lines.

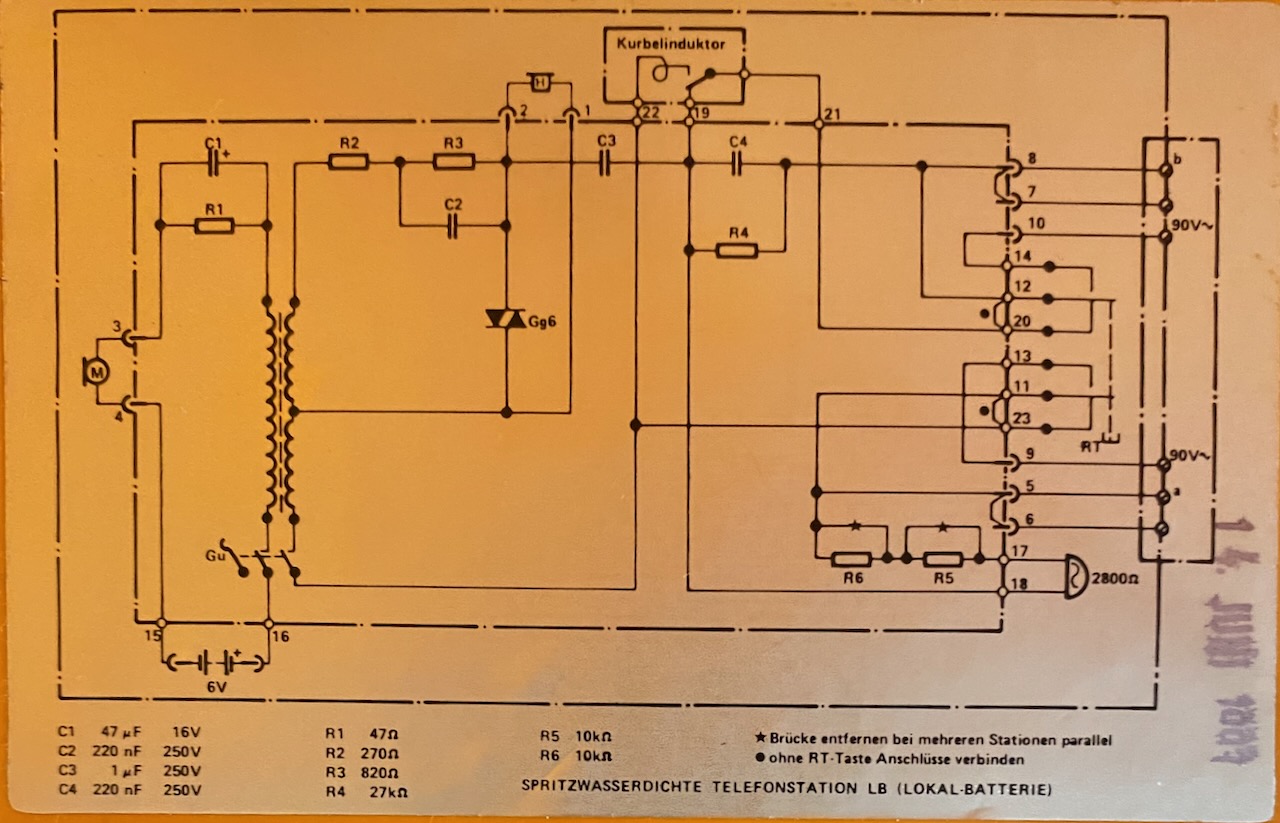

Diagram which is glued to inside of the front and back door.
A stamped date on the diagram is hardly readable, 14. June 199x, the last digit may be a 3.

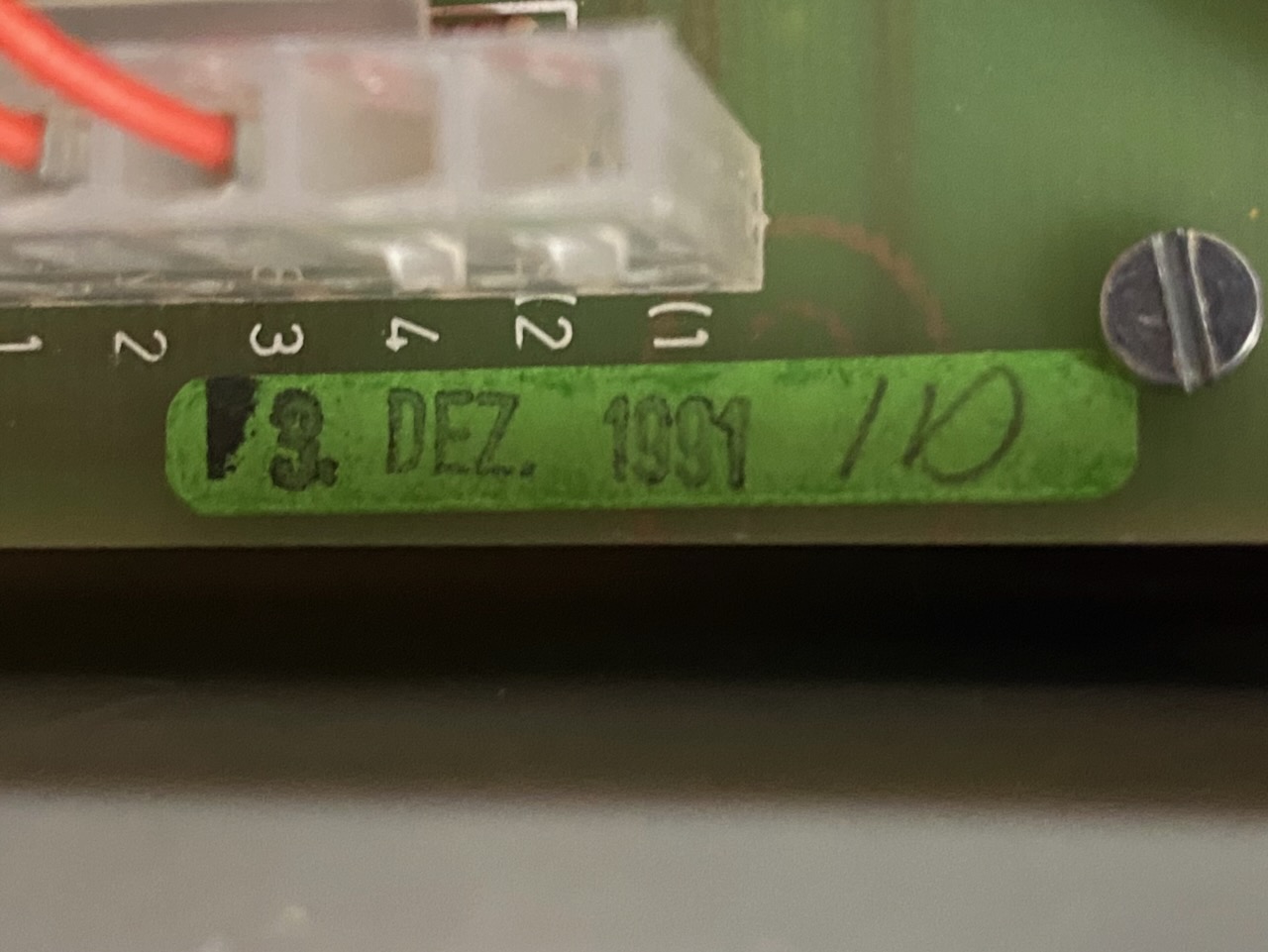

(The date on the mainboard is from December 1991 though).

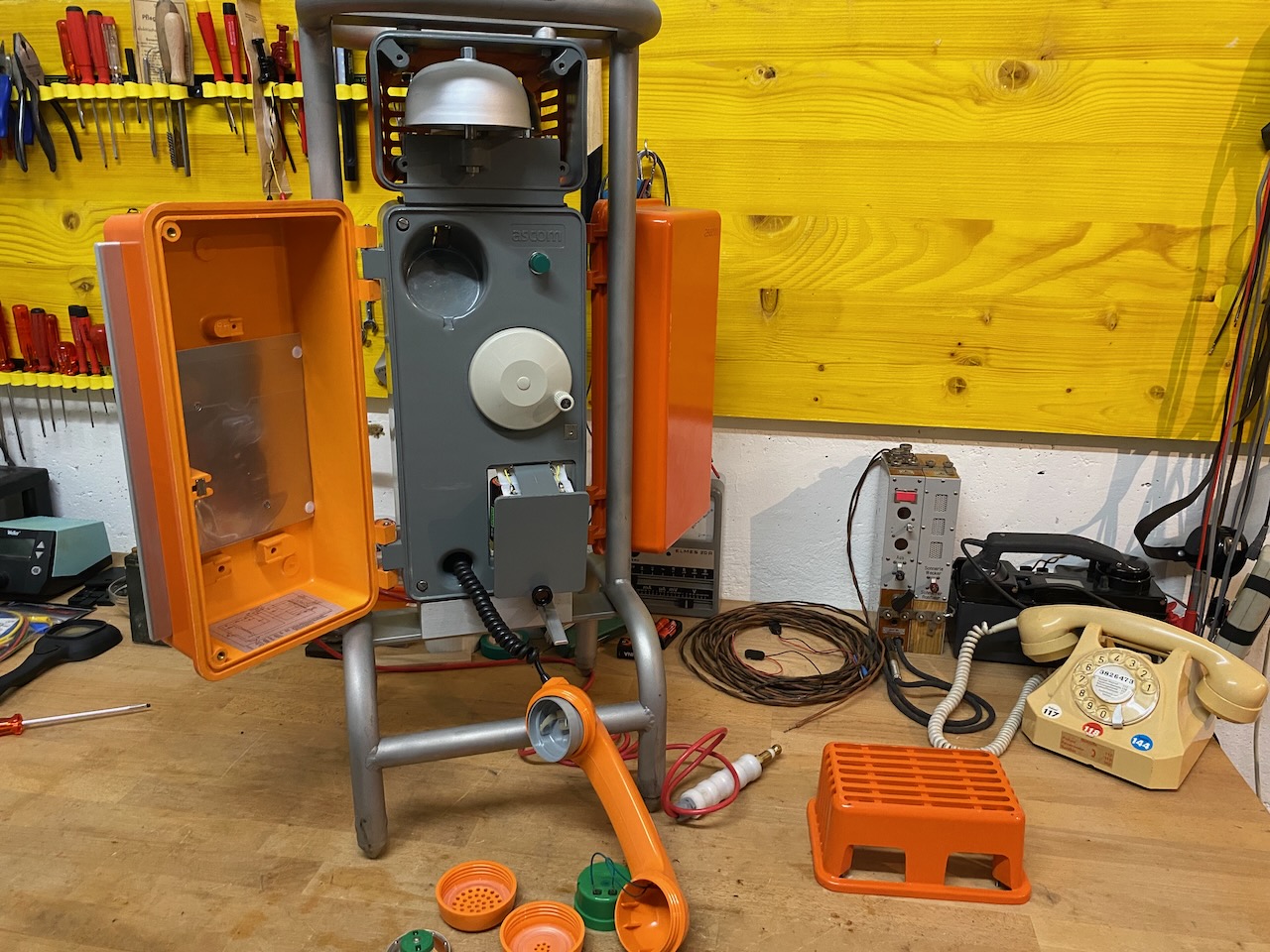

Partly disassembled.

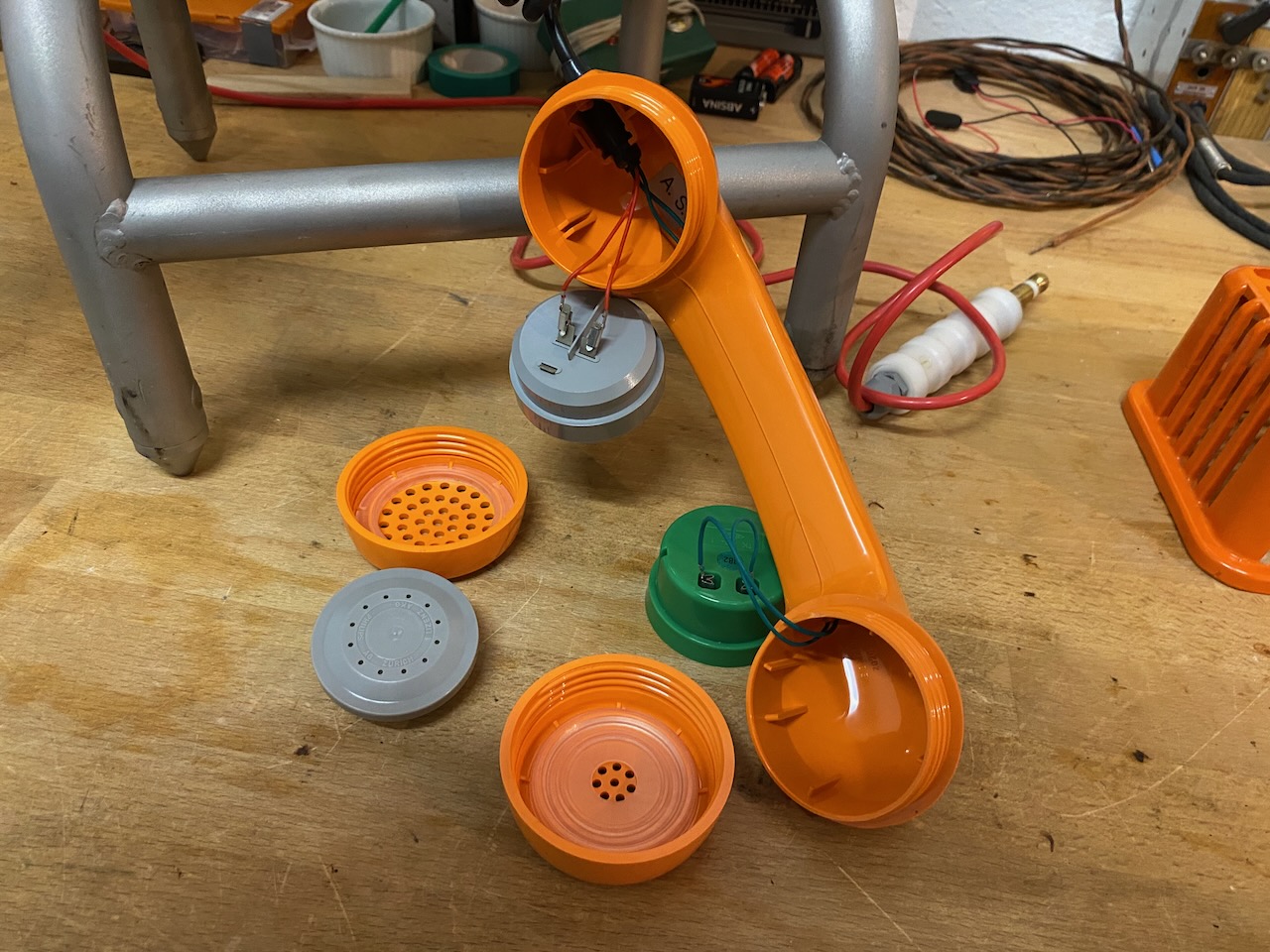

The handset is a standard swiss "Tisch-Telefonapparat Modell 70" handset ("Mikrotelefon Mod. 70").

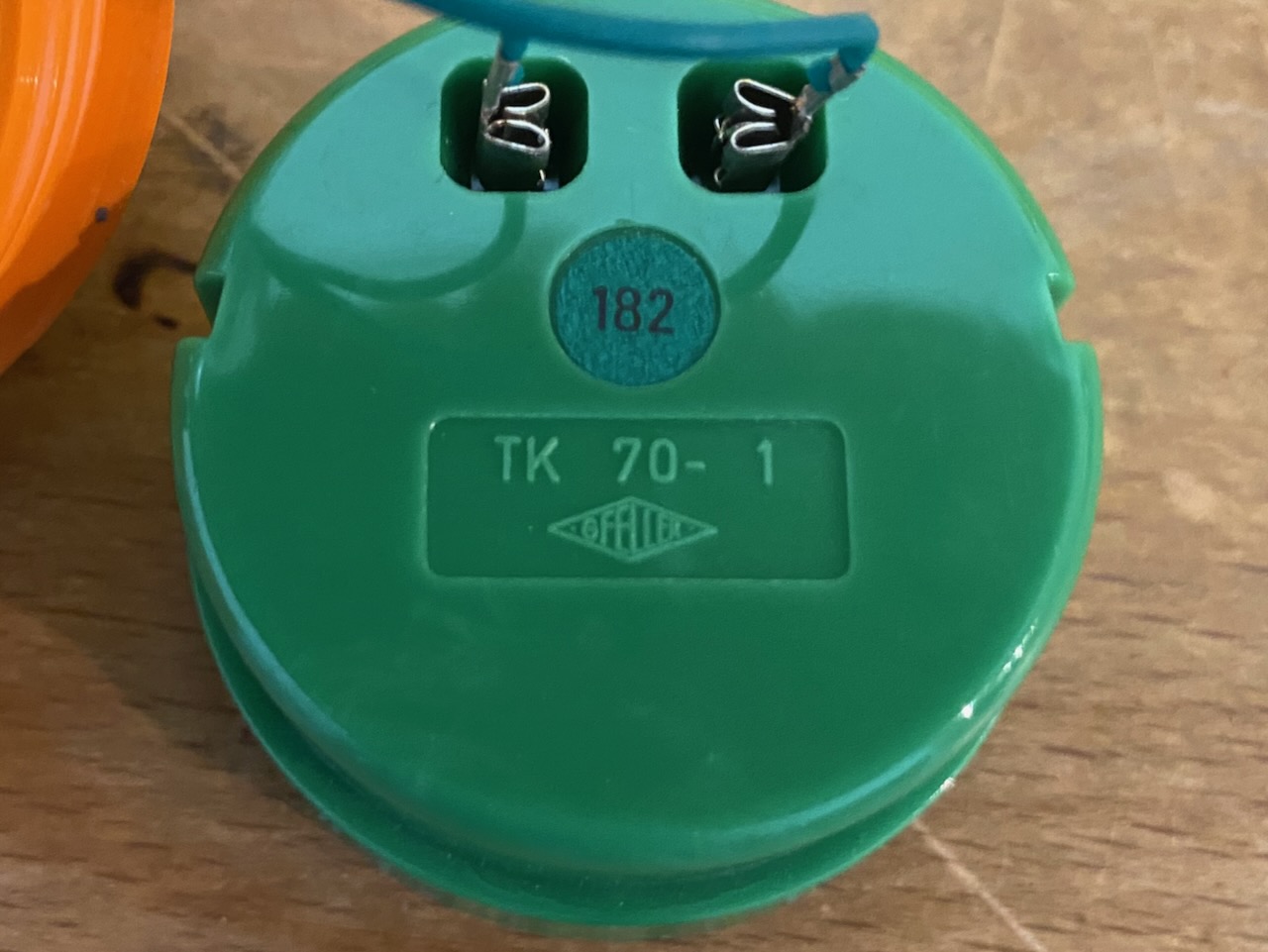

The receiver capsule is also of the standard "Modell 70" type "TK 70-1" (4 pole receiver).

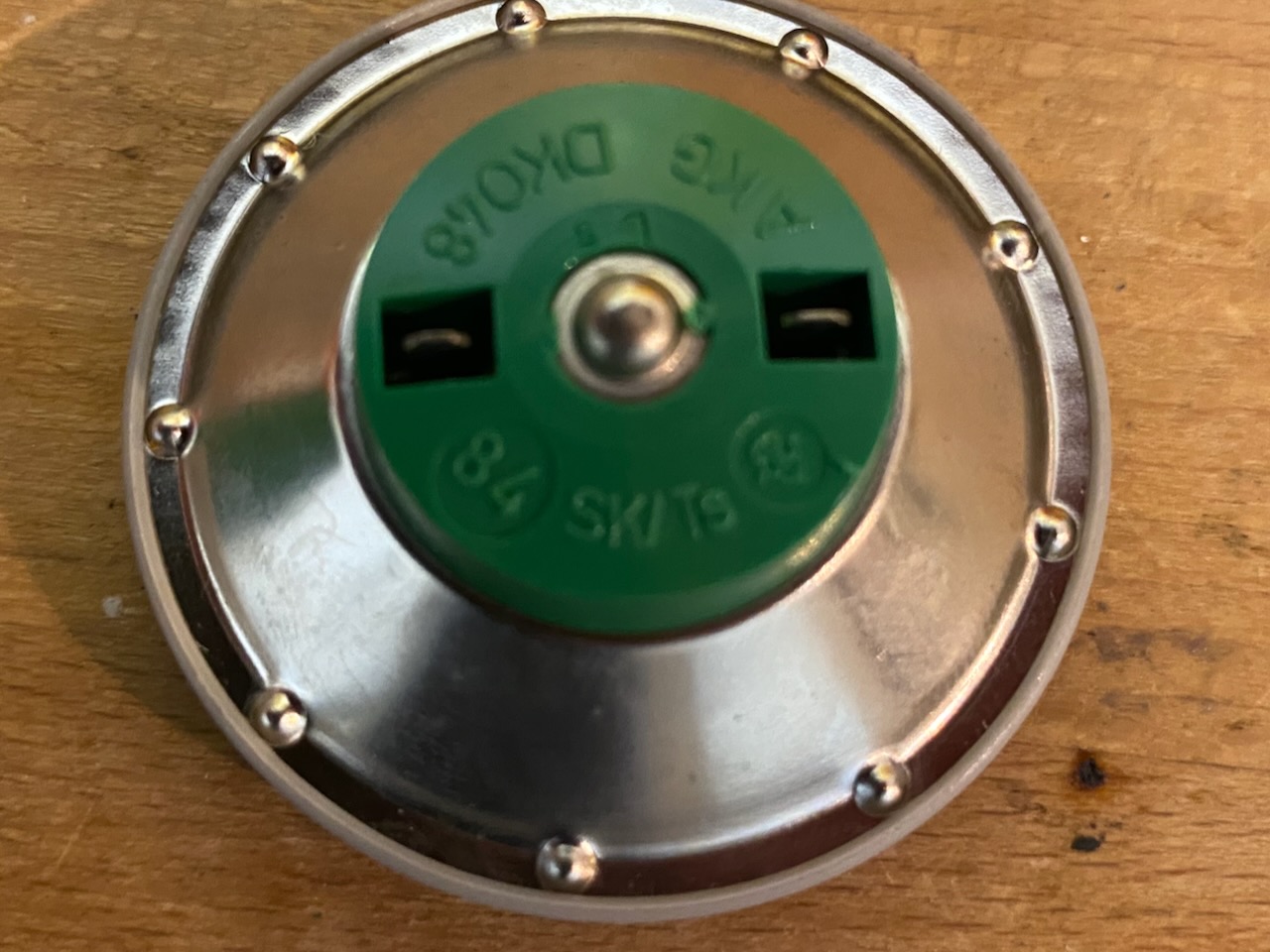

The transmitter capsule (dynamic, amplified) is a Swiss Philips made "AKG DKO48".
(The standard "Modell 70" transmitter capsule MK 70-1 also dynamic and amplified is not LB compatible).

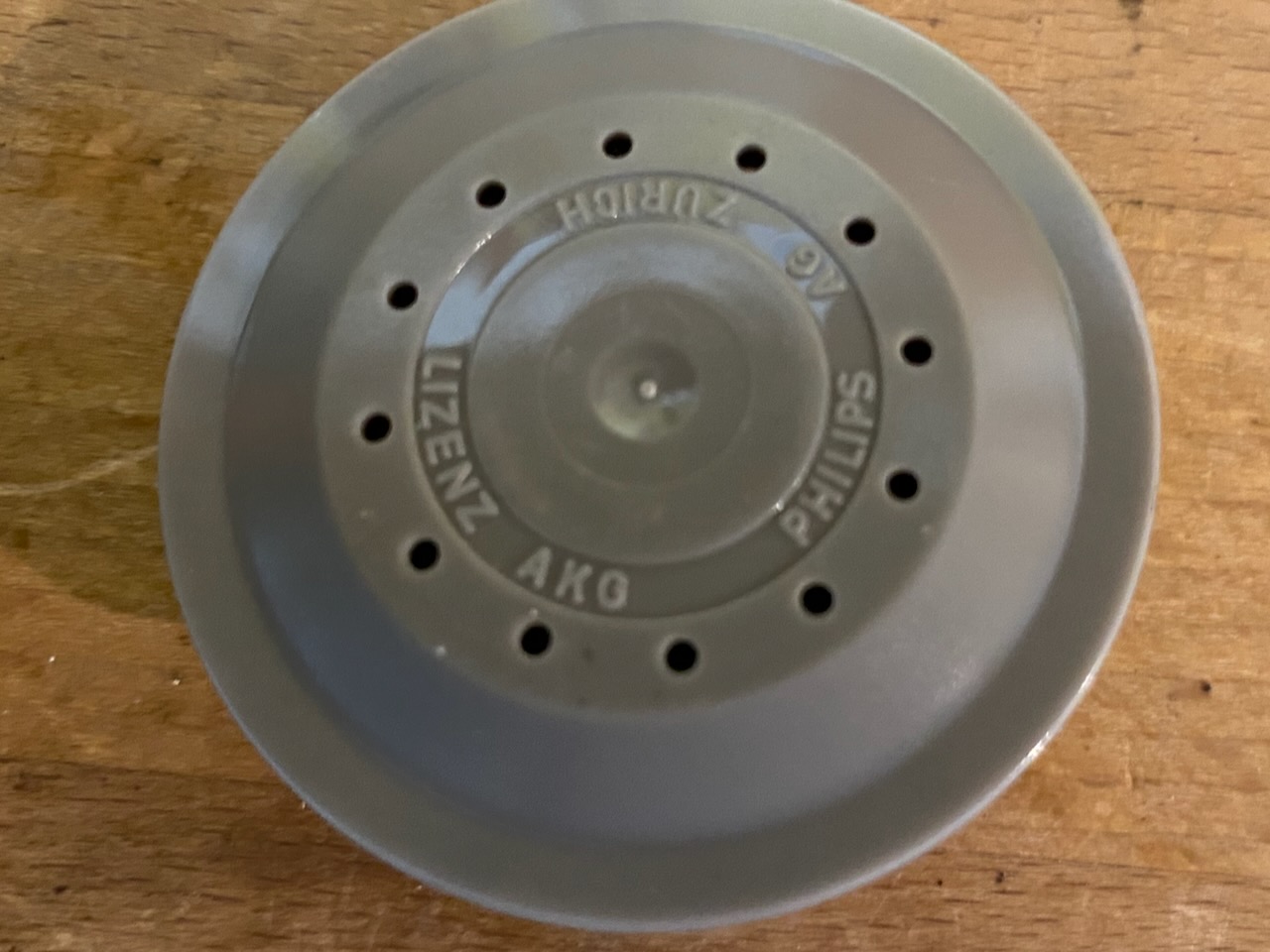

Front of the a Swiss Philips made "AKG DKO48".

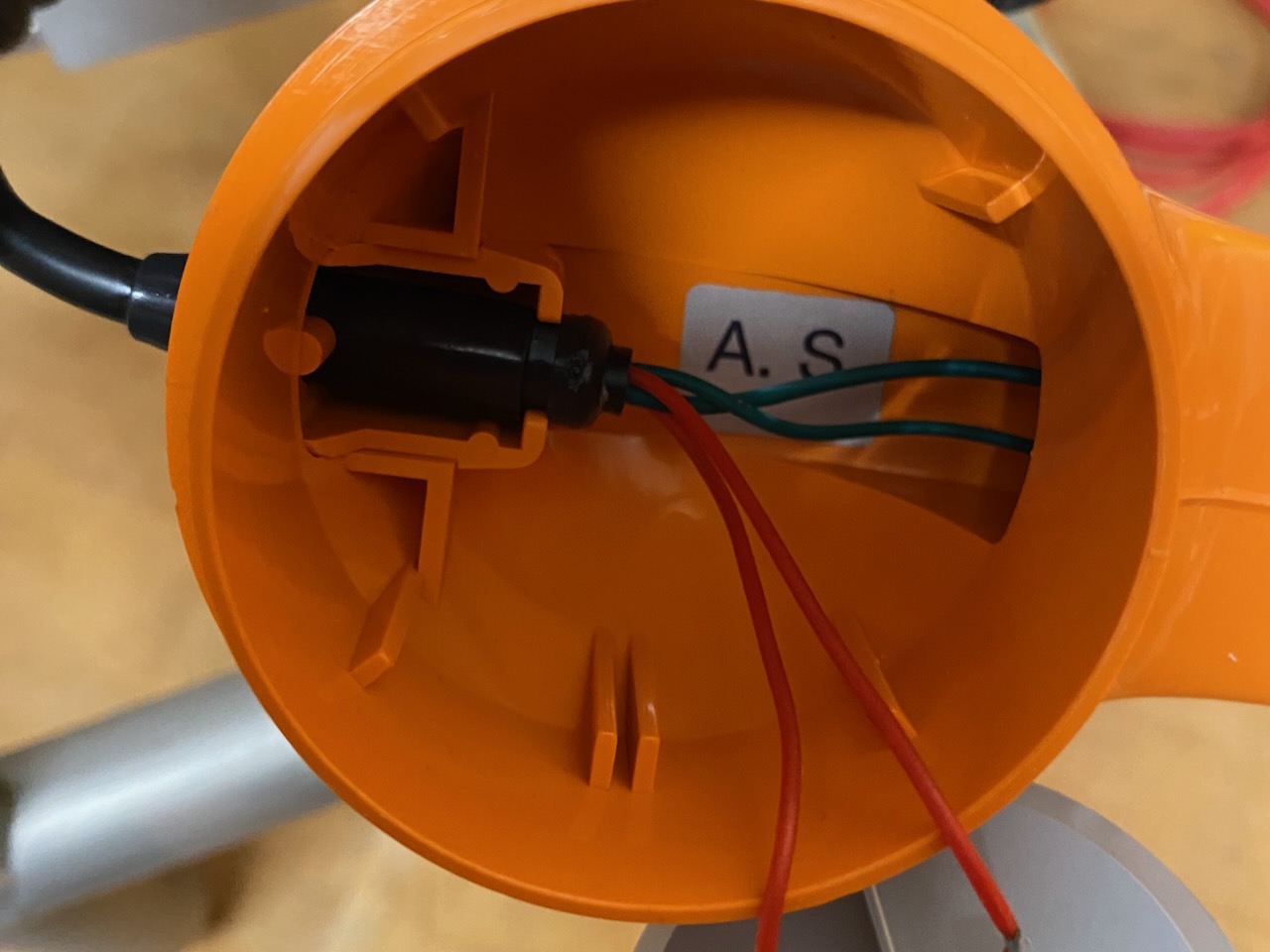

The handset is made in the "Autophon Solothurn" (A.S.) factory of Ascom.

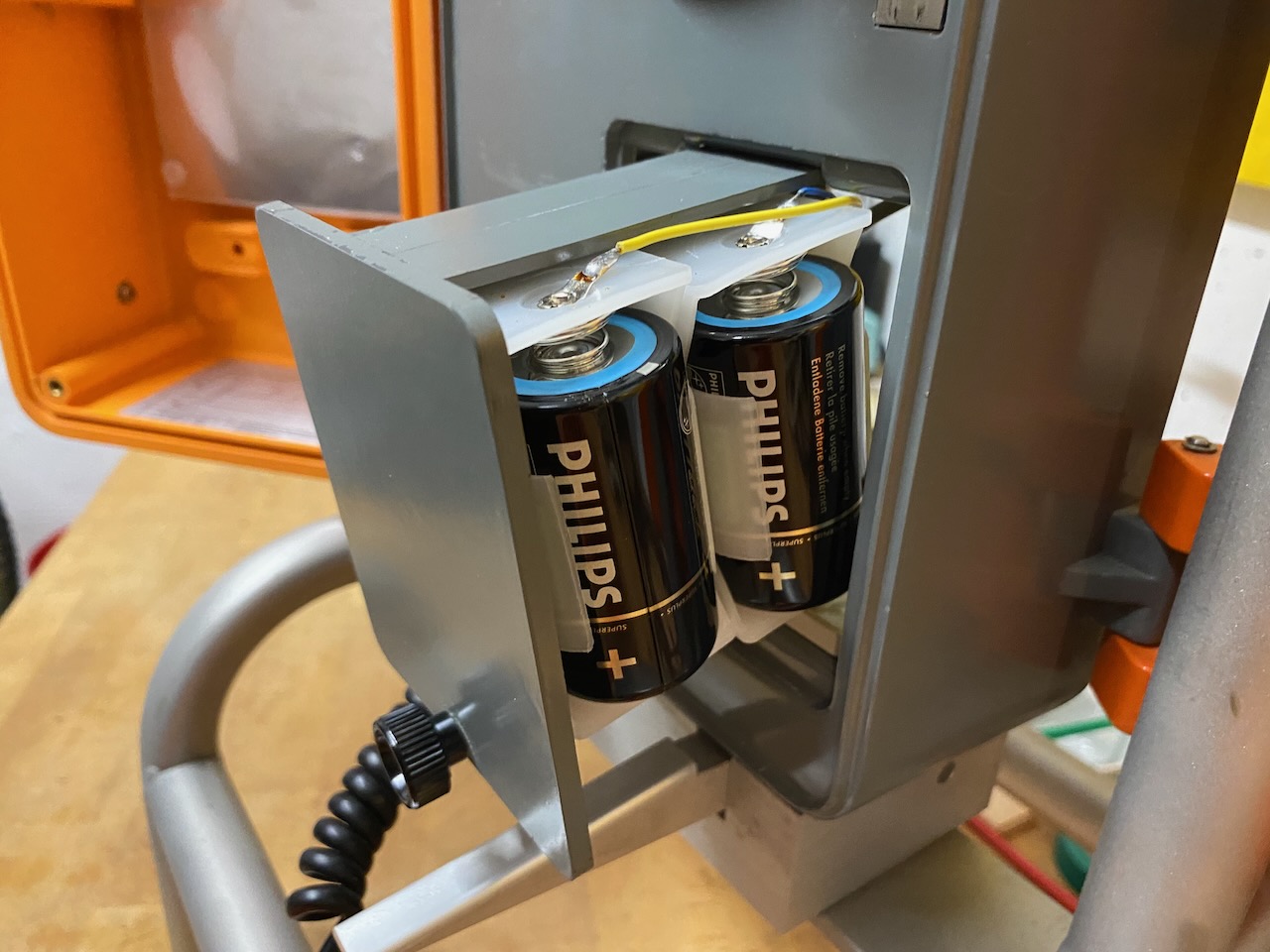

The battery holder for 4* 1,5V D-Cell.
Made by Ascom.

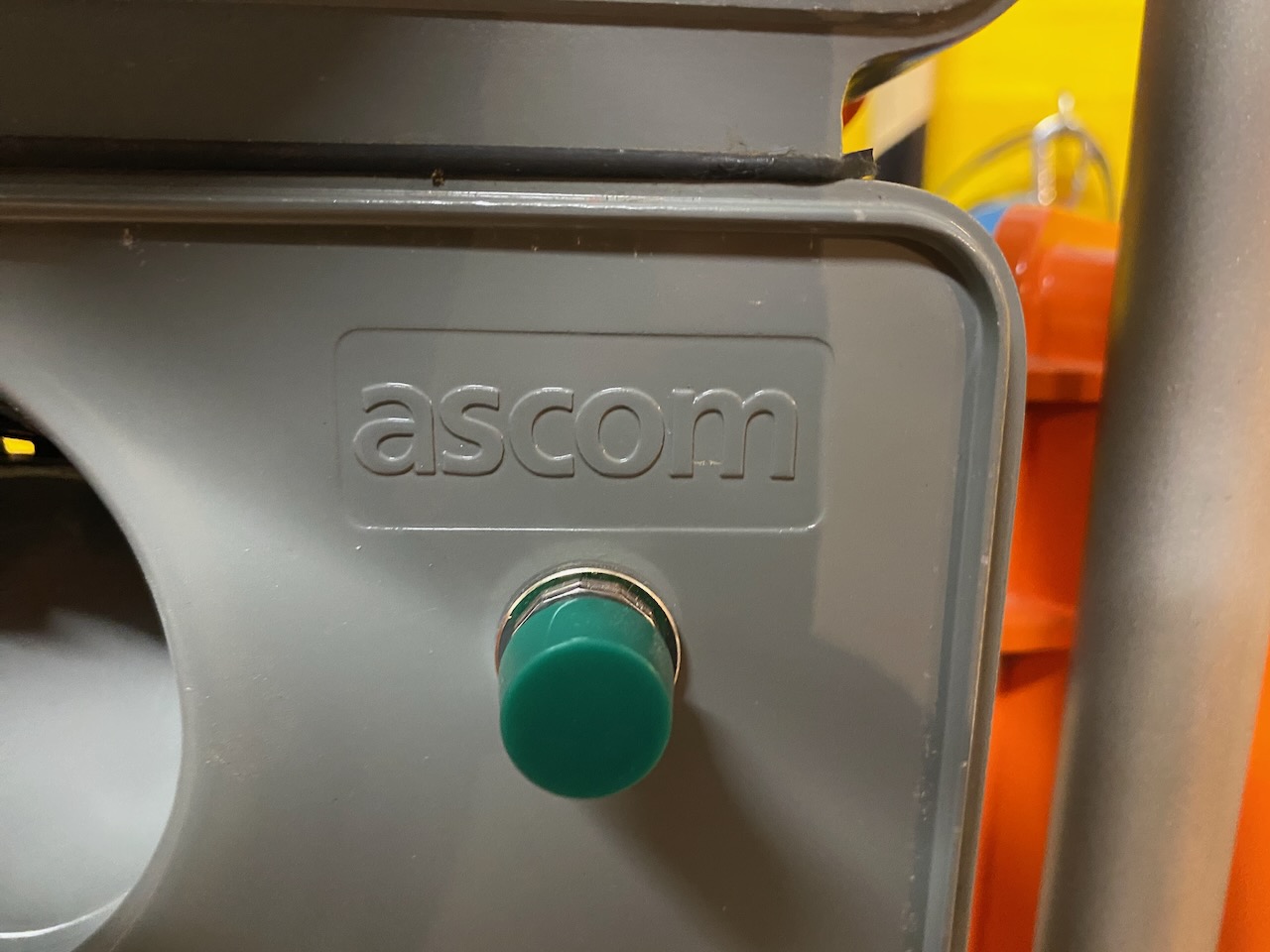

The call button could switch on an external calling power of 90V~, the outside connections for this are not provided on this model though.

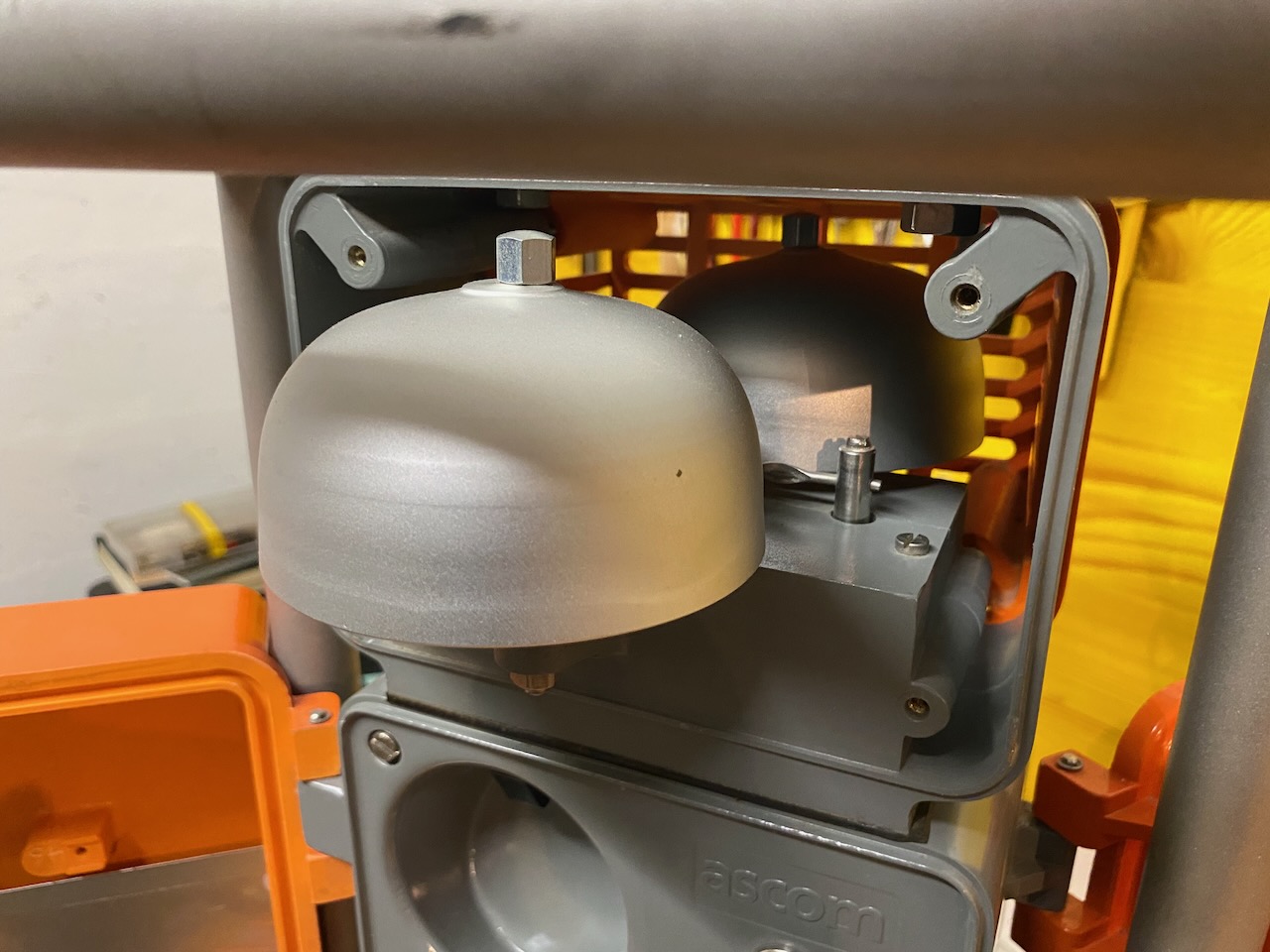

Big loud bells.

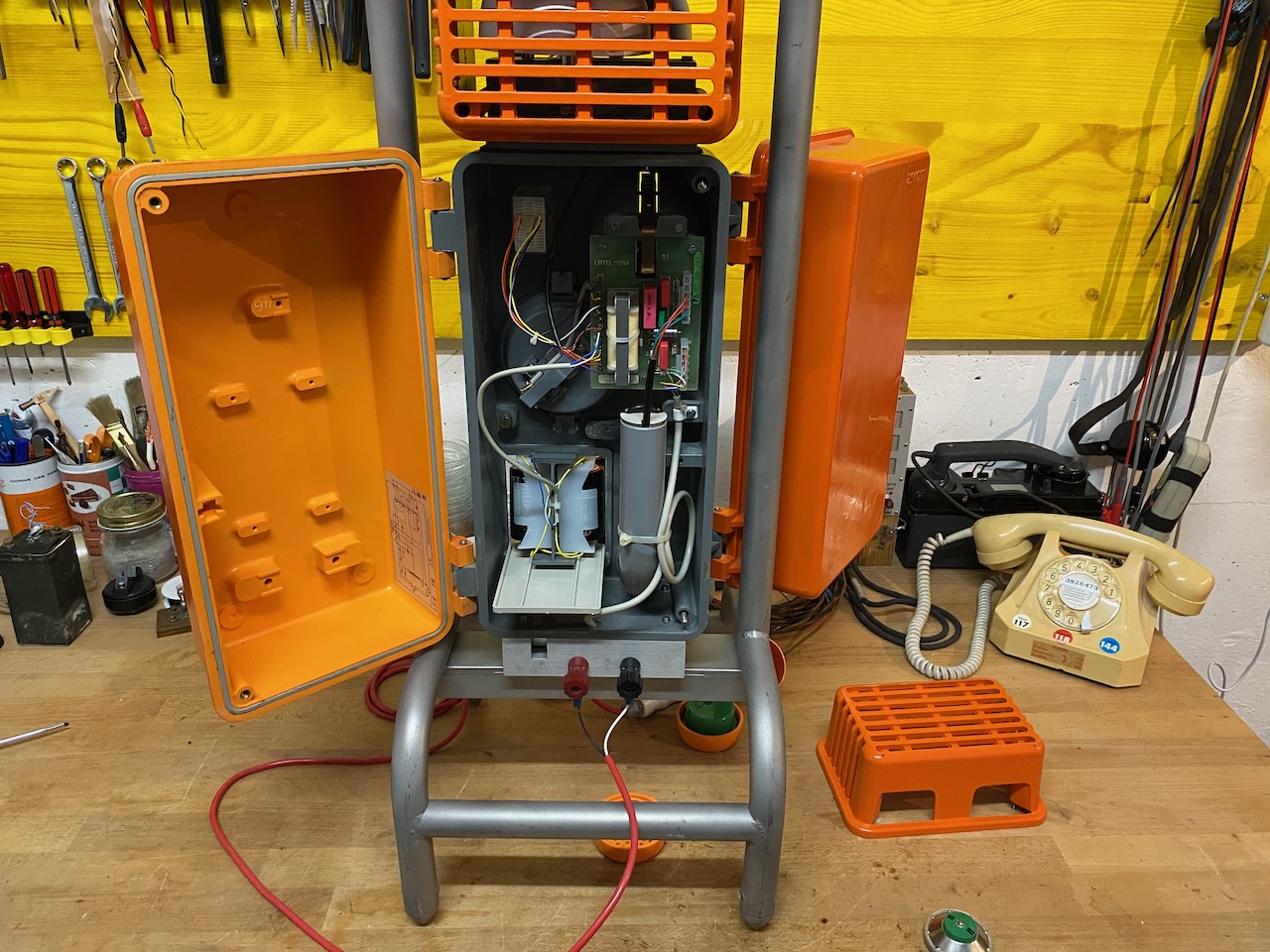

The open back.
Not a lot inside, simple circuit board, magneto (same as on the "Tisch-Station70 T-LB"),battery compartment, tube for handset cord.
Line binding post at the bottom, can take banana plugs or wires, here a cord with a swiss railway line plug is connected.

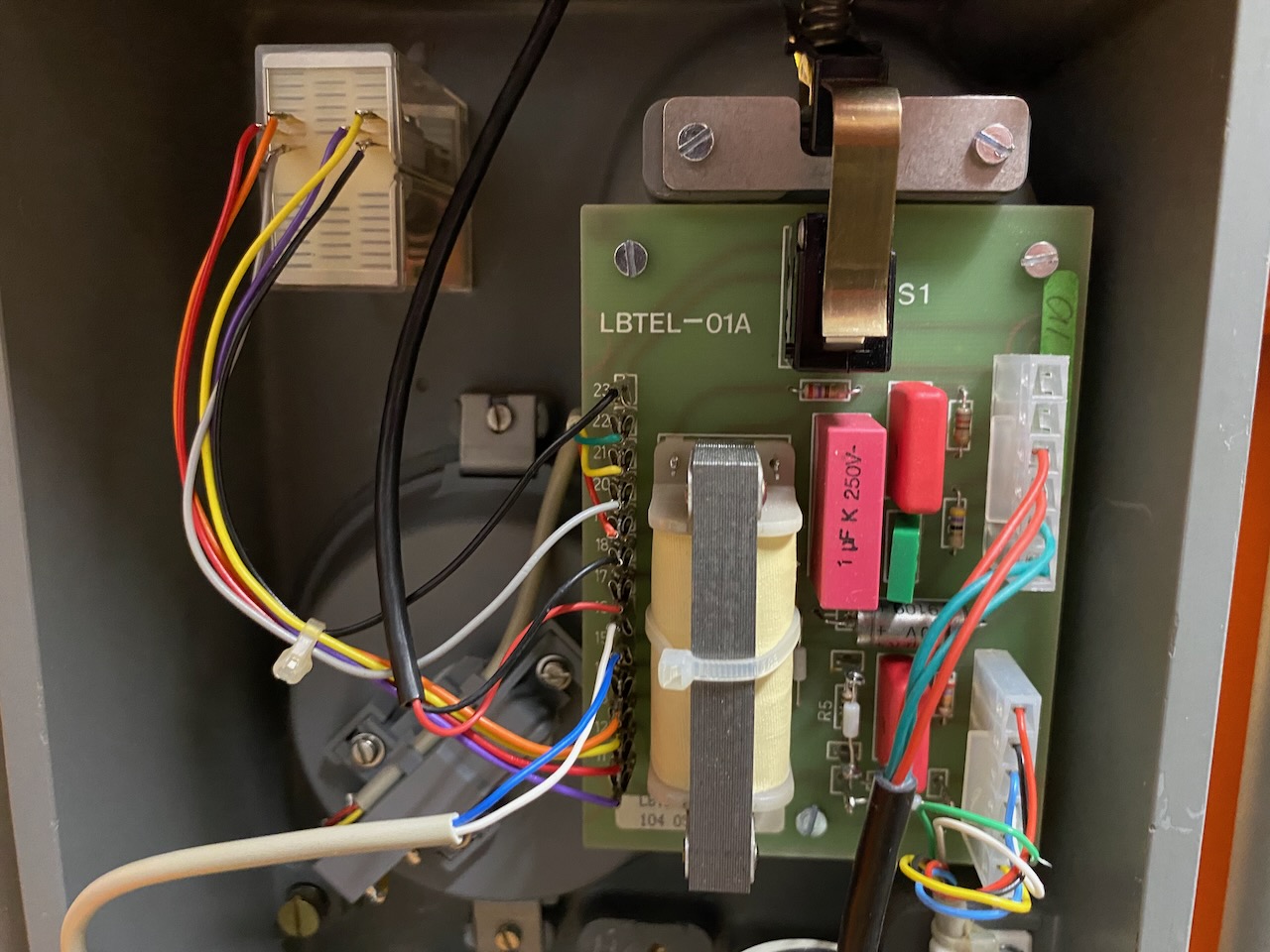

Small and simple circuit board.
Circuit board made in 1991.

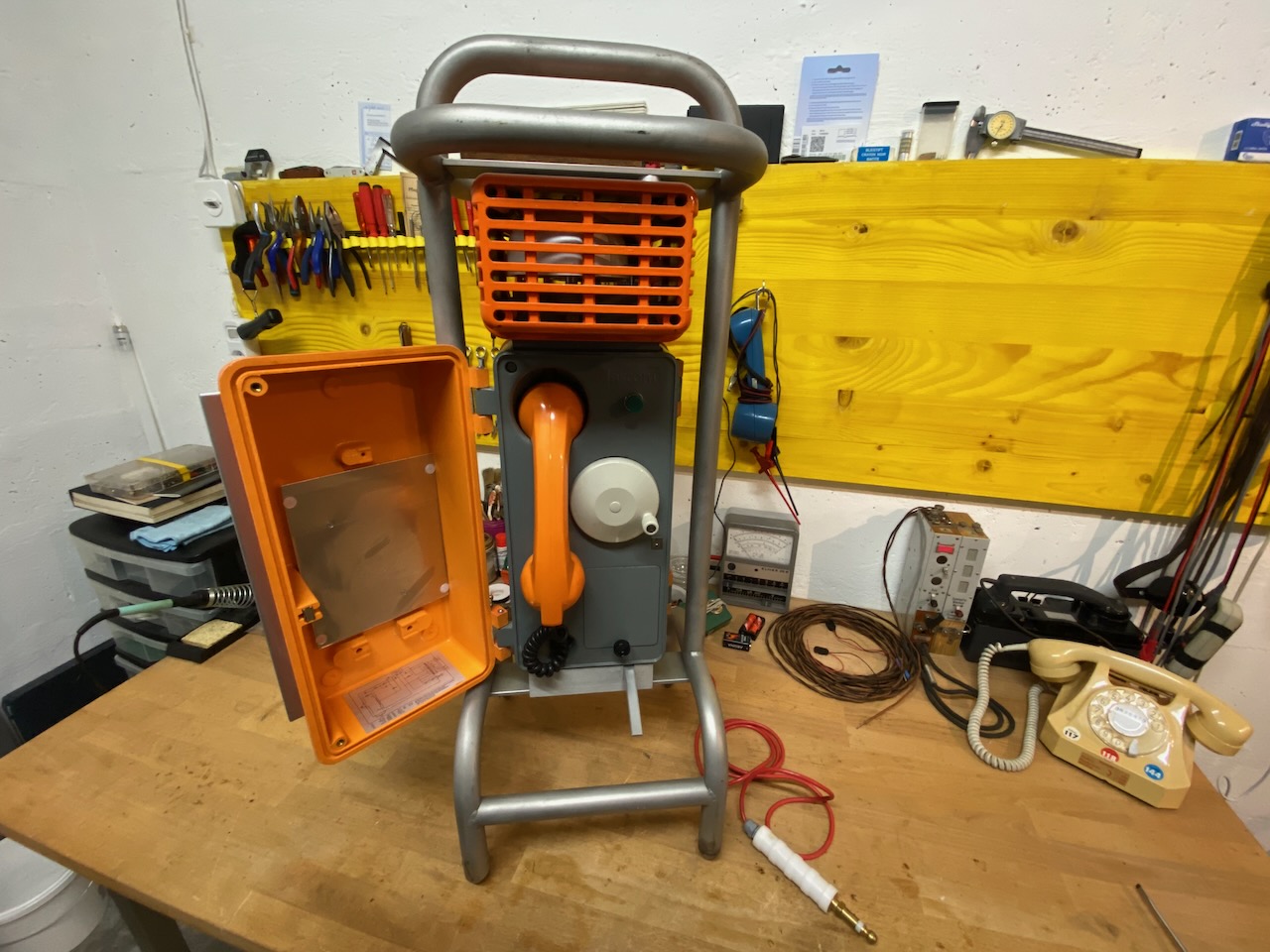

Ready for use.
The connected cord has a Swiss railway line plug which can be connected to respective sockets which were available along Swiss railway lines.

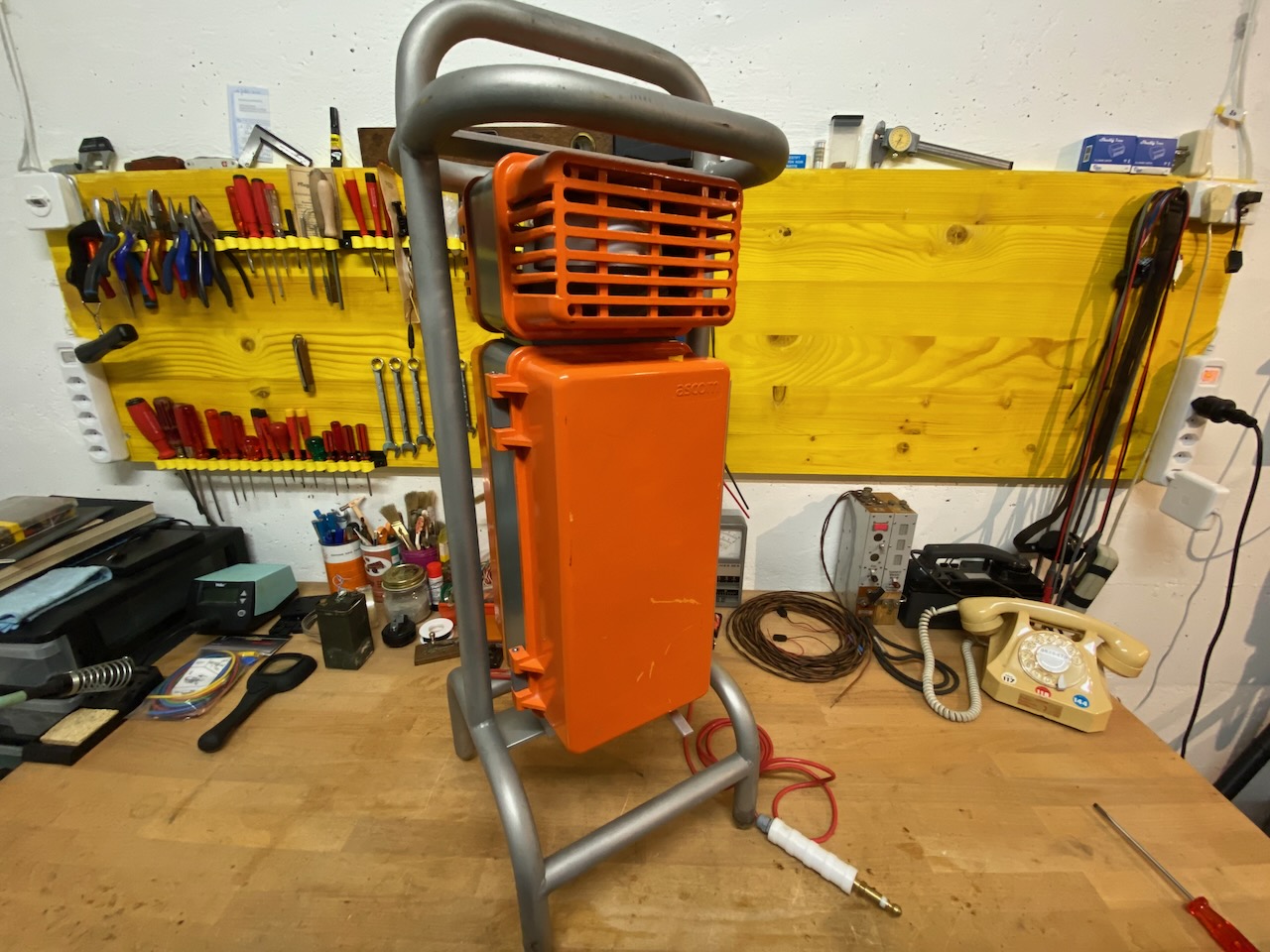

Ready for transport.
