This lineman's telephone of type "P. BL2. SMV. A", manufactured by AOIP in 1975 for the French national railway company (SNCF), is designed to support both magneto and buzzer calling. It can also be connected to an external battery.
The unit is marked with the letters "SES", which could suggest it was originally used at the Gare de Sens station.
Handset Design: Equipped with a mechanical microphone protection cover that automatically opens when the Push-To-Talk (PTT) button is engaged.

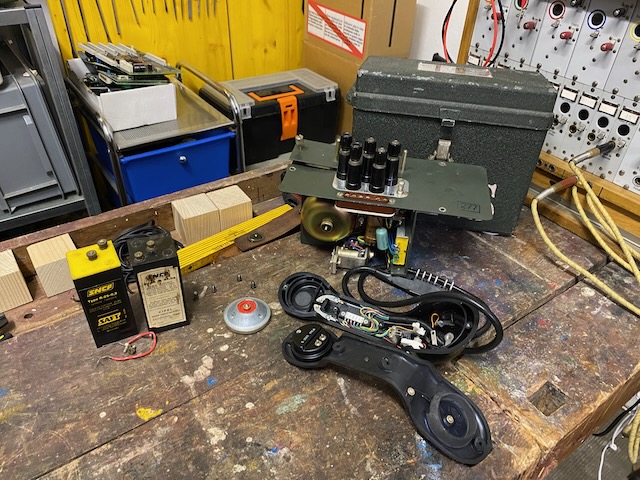

Disassembled.

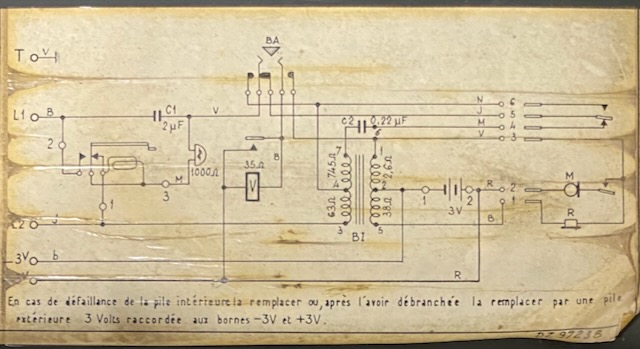

Electrical diagram.

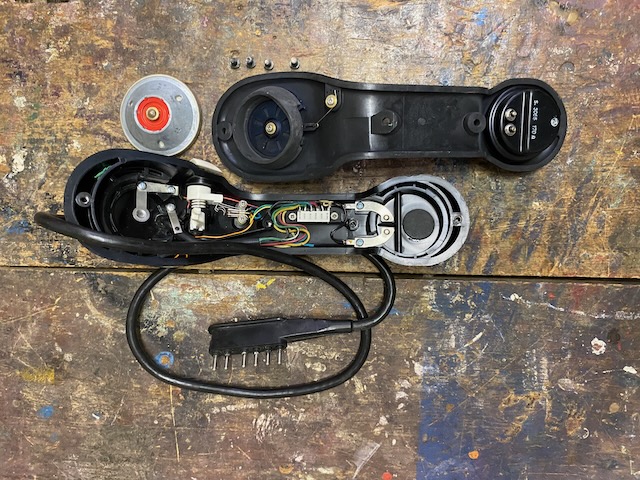

Open handset.
The handset is made of plastic.
It is plugged.

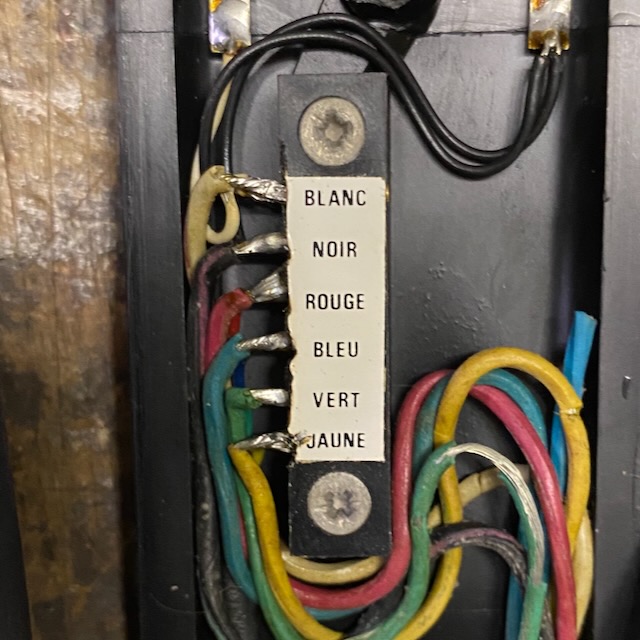

The five wire connection inside the handset with the respective wire color code in french.
The device is powered by 2x 1,5V batteries of french type R-25-0,2 (which seem to indicate 25mAh and 0,2A max).

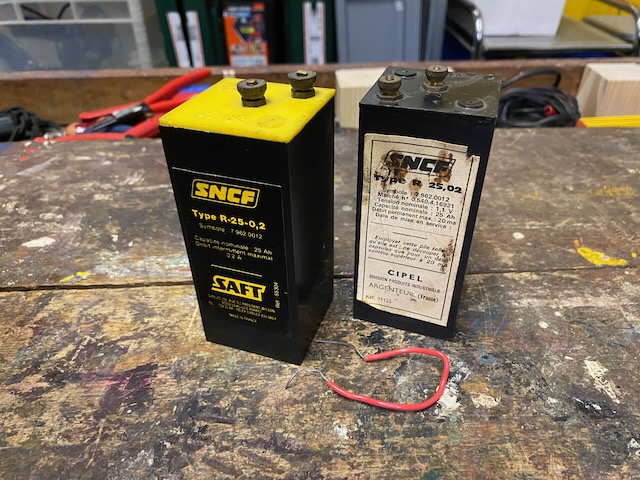

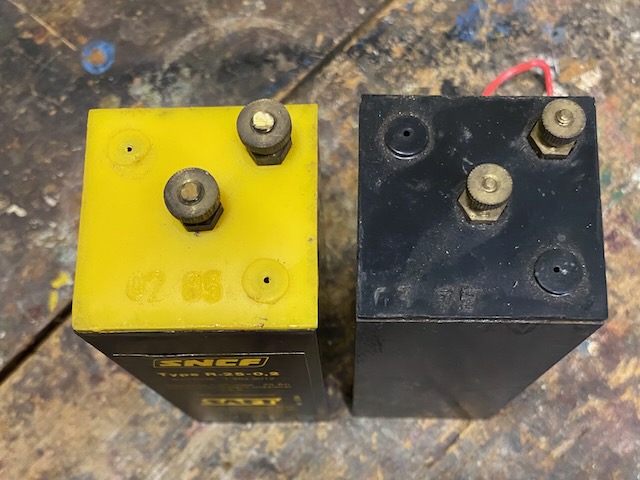

These batteries are made for SNCF and provided by SAFT and CIPEL.
SAFT battery made in 85, CIPEL battery in 75 or 79.

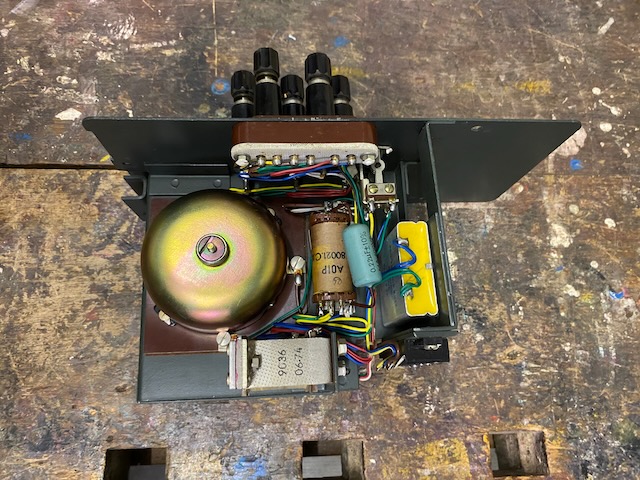

From the left: Ringer, Coil, Capacitors.
Below the ringer the buzzer.

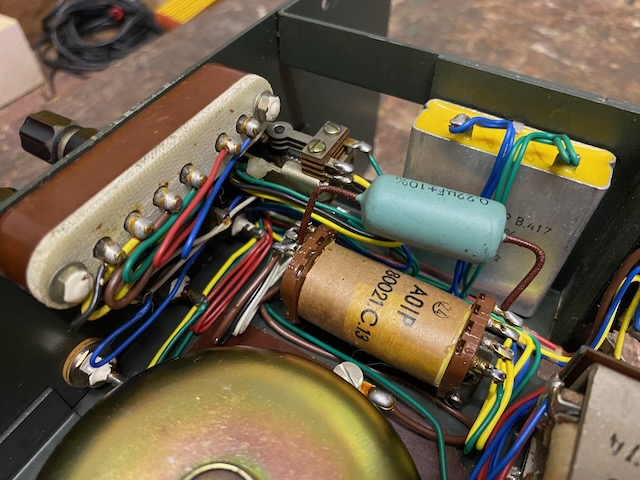

Wiring detail.
Battery wiring.

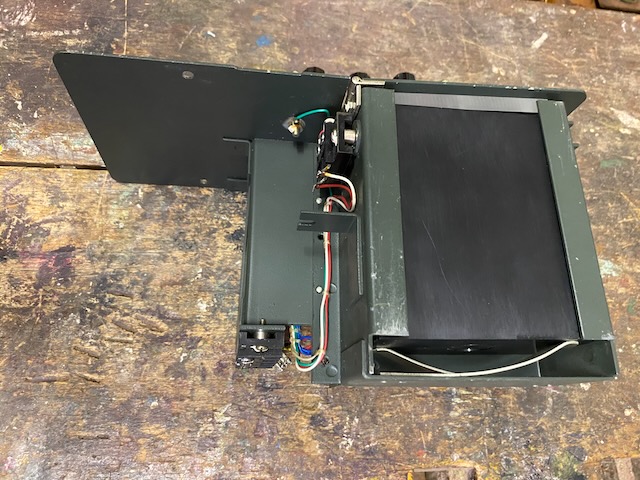

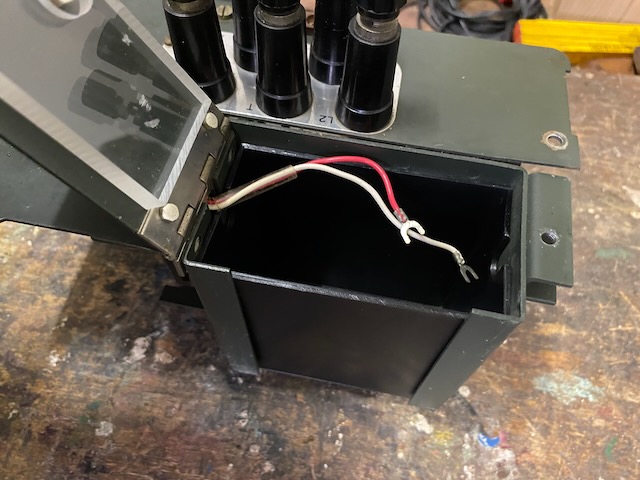

Battery box.

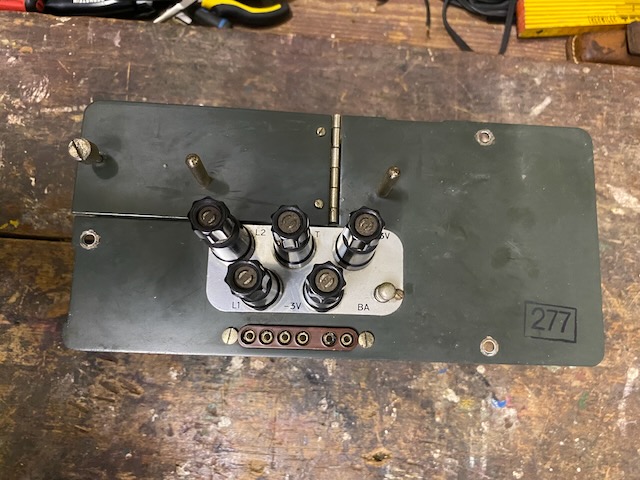

Binding posts on top for Line and earth (L1, L2, T) and external battery (+3V, -3V).
The buzzer button (labeled "BA").

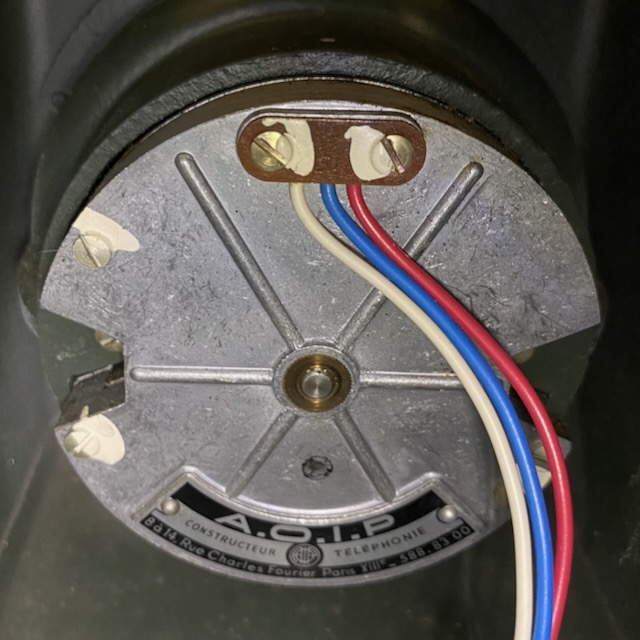

The magneto is fixed to the case (magneto also made by AOIP).

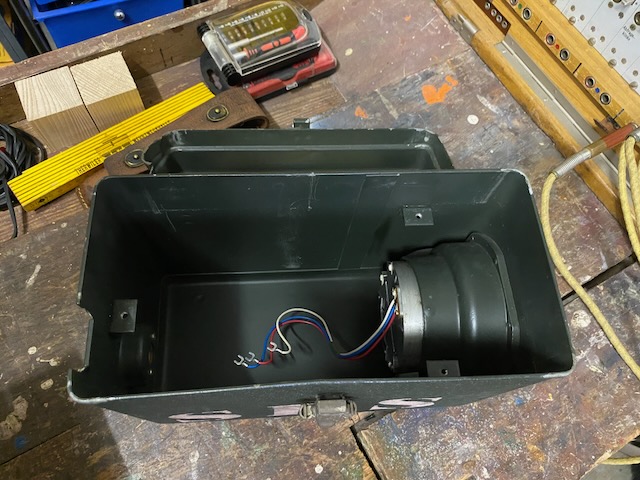

Empty case with magneto.

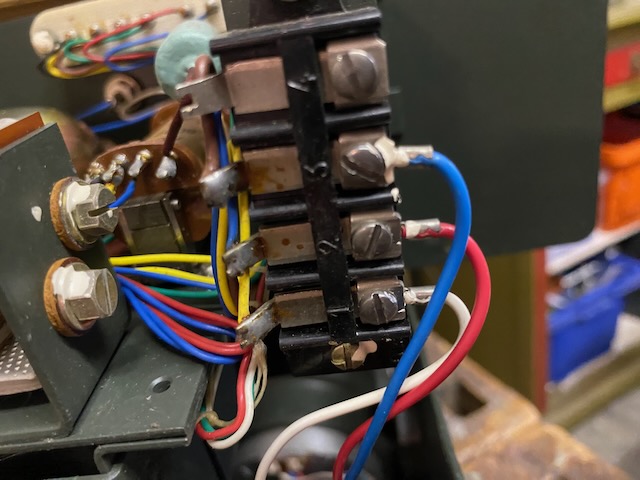

3 wire magneto connections to the chassis.

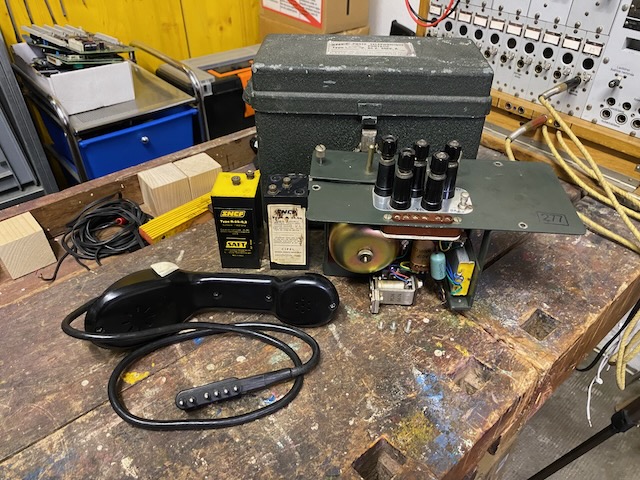

Neatly arranged to mount.

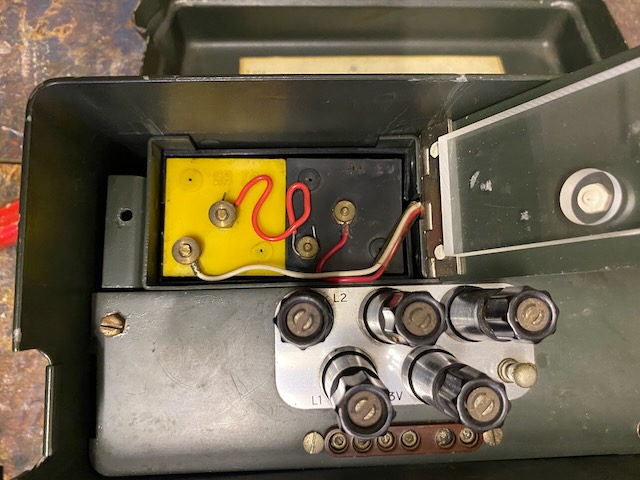

Batteries inserted and connected.

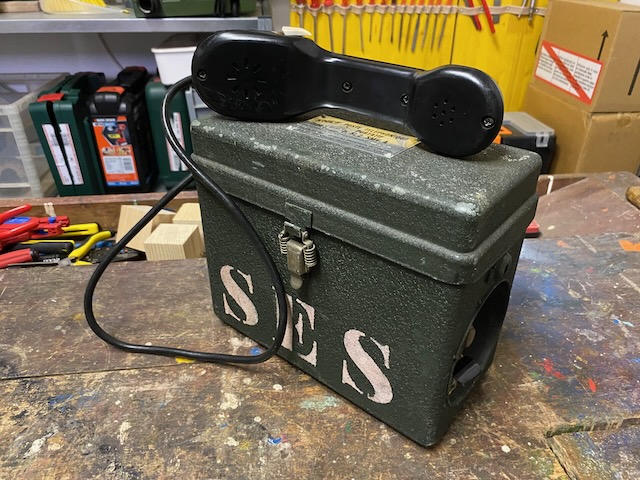

Ready to use.

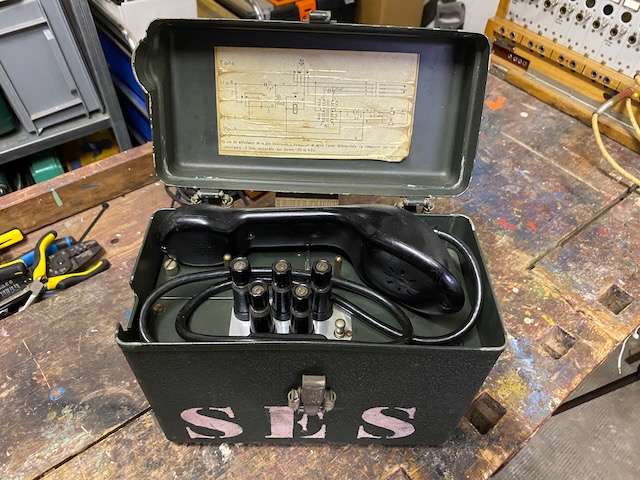

Handset stored.
Ready to transport.

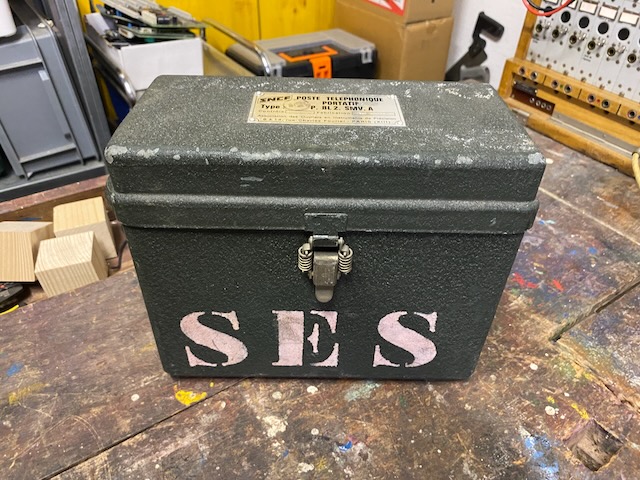

Marked "SES" on the front.

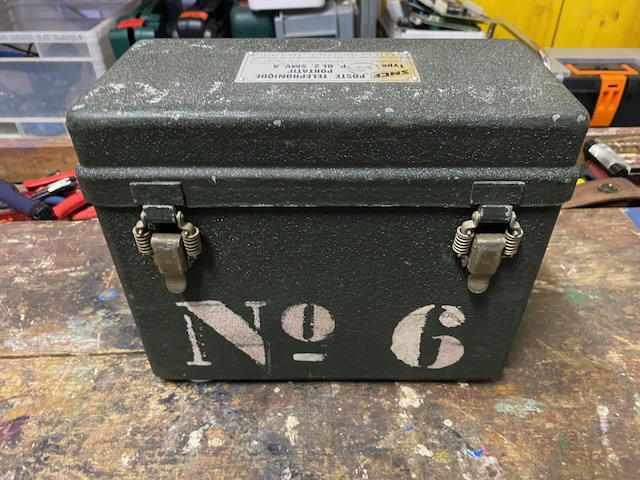

Marked "No. 6" on the back.

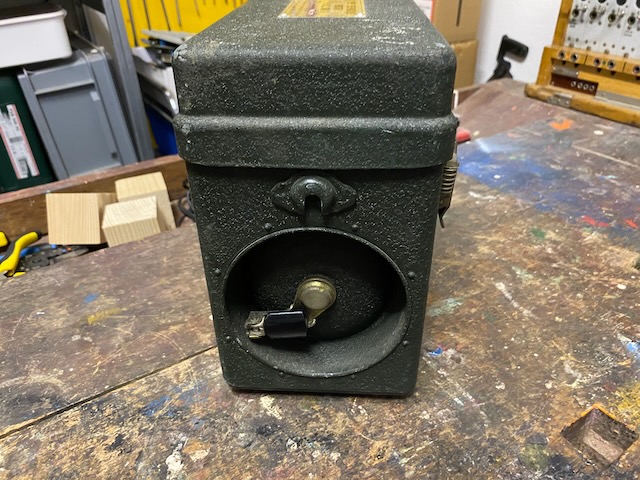

Foldable magneto crank handle.

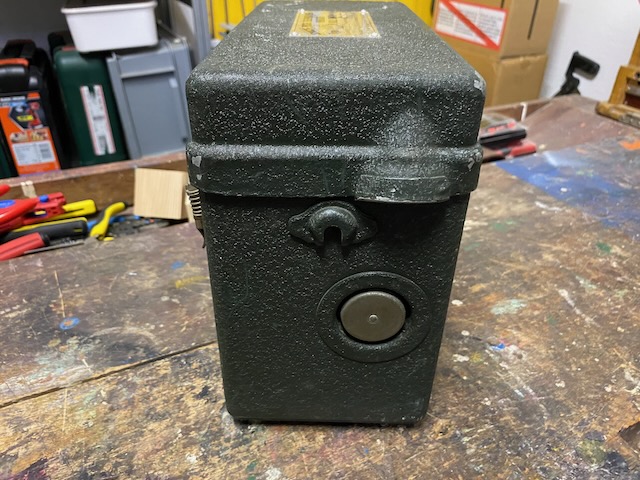

Covered opening in the box on ringer side.
Label with mfg. date of 75.

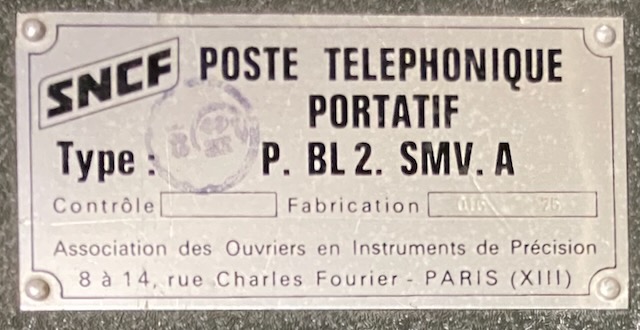

Exact device type "P. BL2. SMV. A".
